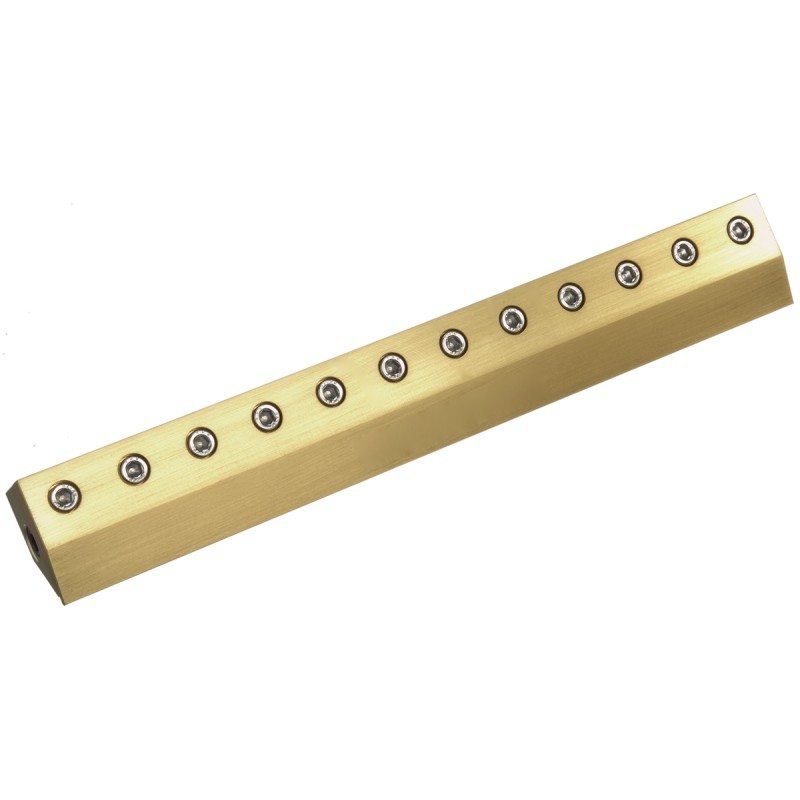

2″ Aluminum X-Stream™ Air Knife 10002X

Reference: 10002X

Condition: New product

The high performance Nex Flow™ Silent X-Stream™ Air Blade™ Air Knife provide a continuous sheet of high velocity air to strip moisture and debris. Our Stainless Steel models are available for high temperature and corrosive applications. Another version that we produce is the Hardened Anodized Aluminum” X-Stream Air Knife, that can sometimes eliminate the need to go to more costly and heavy stainless steel units and save in cost!

SKU: 10002X Category: Uncategorised

BENEFITS

Longer life in difficult environments than competitive models.
Lower compressed air consumption than drilled pipe or rows of open jets and nozzles.
Can be placed end to end for continuous airflow.
Maintenance free with output easily controlled, safe to use.

APPLICATIONS

Cleaning of steel sheet in strip mills
Parts drying
Cleaning or drying web processes.
Pre-paint drying and blowoff
Scrap removal
Parts cooling
Circuit board cooling
Use for environment separation with air curtain effect
Opening bags for filling
Sheet separation

DIMENSIONS

PART NO. (Aluminum & Stainless Steel)	AA	A	B	C	D	E	F	G	H Rear Inlets (Side Inlets)
Model 10002X Model 10002XS	2″ 50.8mm	N/A	N/A	1.0″ 25.4mm	0.2″ 5mm	0.5″ 11mm	0.5″ 11mm	N/A	1 (0)
Model 10003X Model 10003XS	3″ 76.2mm	.641″ 16.3mm	N/A	1.5″ 38.1mm	0.2″ 5mm	0.5″ 12.7mm	0.43″ 11mm	N/A	1 (0)
Model 10006X Model 10006XS	6″ 152mm	1″ 25.4mm	2″ 50.8mm	3″ 76.2mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 1009X Model 1009XS	9″ 228.6mm	1″ 25.4mm	2″ 50.8mm	3″ 76.2mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10012X Model 10012XS	12″ 304.8mm	1″ 25.4mm	2″ 50.8mm	3″ 76.2mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10015X Model 10015XS	15″ 381mm	1″ 25.4 mm	2″ 50.8 mm	4″ 101.6 mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10018X Model 10018XS	18″ 457.2mm	1″ 25.4mm	2″ 50.8mm	5″ 127mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10024X Model 10024XS	24″ 609.6mm	1″ 25.4mm	2″ 50.8mm	6″ 152.4mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10030X Model 10030XS	30″ 762mm	1″ 25.4mm	2″ 50.8mm	6″ 152.4mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10036X Model 10036XS	36″ 914.4mm	1″ 25.4mm	2″ 50.8mm	6″ 152.4mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10042X Model 10042XS	42″ 1066.8 mm	1″ 25.4 mm	2″ 50.8 mm	6″ 152.4 mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	2 (2)
Model 10048X Model 10048XS	48″ 1219.2 mm	1″ 25.4 mm	2″ 50.8 mm	9″ 228.6 mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	3 (2)
Model 10054X Model 10054XS	54″ 1371.6 mm	1″ 25.4 mm	2″ 50.8mm	9″ 228.6 mm	0.5″ 5mm	0.5″ 12.7mm	0.43″ 11mm	0.83″ 22mm	3 (2)

TECHNICAL

10002X X-Stream Air Blade

Inlet Pressure (PSIG)	10	20	30	40	50	60	70	80	90	100	110	120
Force (lbs)	0.01	0.08	0.20	0.35	0.54	0.77	1.04	1.35	1.70	2.09	2.53	3.00
Flow (SCFM)	0.7	1.6	4.4	7.9	12	17	22	28	34	41	49	57
Velocity (ft/s)	137	172	207	240	273	304	335	365	394	422	449	475

Inlet Pressure (BAR)	0.7	1.4	2.1	2.8	3.5	4.2	4.9	5.6	6.2	6.9	7.7	8.4
Force (grams)	4.54	36.3	90.7	159	245	349	472	612	771	948	1148	1361
Flow (SLPM)	19.8	45.3	125	224	340	481	623	793	963	1161	1388	1614
Velocity (m/s)	41.8	52.4	63.1	73.2	83.2	92.7	102	111	120	129	137	145
